How To Download OpenStreetMap(OSM) Data Using QGIS



Learn To Download OpenStreetMap Using QGIS

OpenStreetMap (OSM) is a project which can be used to create a freely editable map. These freely available maps can be used for any purpose, maybe personal or commercial purposes. A huge data set has been created by volunteers from all around the world. These data can be downloaded and used as our requirements. This data can be used to make static maps using GIS software like ArcGIS, QGIS, etc.

There are a lot of ways to download OSM data from different websites but in this case, we will use the QuickOSM plugin inside QGIS to download OSM data and then use that data to create a map. Follow the given process.

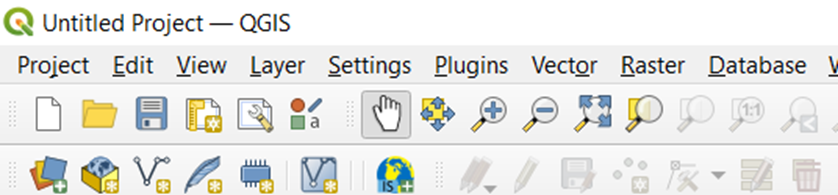

1. Go to the menu toolbar at the top of your new project. You can see the Plugins option.

2. Inside the Plugins go to Manage and Install Plugins

Plugin > Manage and Install Plugins

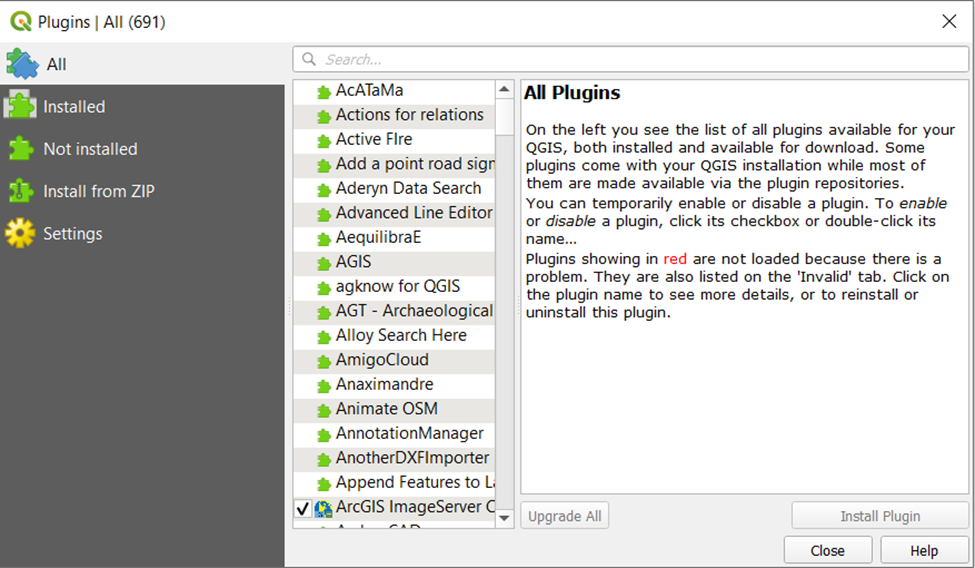

3. Inside Manage and Install Plugins, you will see.

4. Now, In the search bar, search for QuickOSM, After that, you will see the Install PluginOption at the bottom right corner of the dialogue box, Click In Install Plugin.

Plugin > Manage and Install Plugins > Search > QuickOSM



5. You have successfully installed QuickOSM Plugin. Now, you can download OSM data directly from QGIS.



After installing the plugin, you can see the QuickOSM icon in the panel at the top left corner.



6. Click the icon and the icon and then you will see

Here, the QuickOSM plugin mainly works on the basis of the Overpass API. The user sends the query to the API and API returns the user with the set of data according to the query of the user.



You can see three options in the box, “Key”, “Value”, “In”. Before going through the query, you should know that every feature in OpenStreetMap is denoted by Tag. Tag is composed of key and value. If you want to explore more about key and value visit: https://wiki.openstreetmap.org/wiki/Tags





7. For this case, I will be downloading all the schools inside Pokhara so, I will give key as “amenity” and value as “school”

Key: amenity

Value: school

In: Pokhara

At the bottom right, you can see Run Query. Click that to run the query.



8. After running the query, you will see a dataset generated at the Layers panel.





In this way, you can download and use OpenStreetMap data directly from QGIS without using any coding.



You can also learn on Exploring OpenStreetMap Data by watching the video below as well.
